Sagar Forge & Fittings is one of the leading manufacturer and exporter of the High Grade ANSI/ ASME B16.9 180° Long Radius Elbow which use in various industries.ANSI/ ASME B16.9 180° Long Radius Elbow are manufactured according to the International standards, namely, the American standard [ANSI/ASTM], the British standard [BS EN] , and the DIN/European standard [EN].

In Sagar forge & Fittings highly strict quality controls are implemented on every step of production to ensure the product quality delivering to the market. Through years of hard work and continuing improvement of quality, we are certified and accredited with the ISO 9001:2008 for our entire quality system

With years of experience in manufacturing ANSI/ ASME B16.9 180° Long Radius Elbow we offer high quality, lower cost but the best service. As a result to that our export account today is in various countries like Saudi arabia, Dubai, Turkey, Kuwait, USA , Canada & Oman.We welcome your inquiries for complete projects or just one fitting.



ANSI/ ASME B16.9 180° Long Radius Elbow Specification

  • Fittings Type:

    Butt Weld Fittings:
    LR & SR Elbows, Tees, Ecc., and Conc., Reducers & Caps
    Forged Fittings:
    Socket Weld, Threaded fittings, Pipe nipple and Swage nipple and Butt welding outlets


  • Standards:

    ASME B16.9, ASME B16.28, and ASME B16.25
    ASME B16.11, and MSS-SP 97


  • Material and Grades:

    Carbon Steel:
    ASTM A234 Gr. WPB
    ASTM A420 Gr. WPL6
    ASTM A105
    ASTM A350 Gr. LF2
    Stainless Steel:
    ASTM A403 WP316/316L
    ASTM A403 WP304/304L
    ASTM A182 F316L, 304L


  • Available Sizes:

    Butt Weld Fittings:1/2" to 102"
    Forged Fittings:1/8" to 4"
    Outlets: Up to 36"

    Other grades or sizes may be available upon request.



What Makes Us Different

Sagar forge & Fittings was incorporated in 1980 in the field of metal industries as a leading ANSI/ ASME B16.9 180° Long Radius Elbow manufacturer. We recognized that the piping industry had two demands from a ANSI/ ASME B16.9 180° Long Radius Elbow manufacturer. First, a quality product designed to work efficiently and economically. Secondly, a product delivered when needed. Sagar forge & Fittings built its business on these two simple, yet vital foundations and continues to provide exceptional ANSI/ ASME B16.9 180° Long Radius Elbow with unsurpassed service.

Sagar forge & Fittings employees take personal pride in production and delivery efforts and are committed to a high standard of excellence for customer service. These commitments are carried throughout our organization daily from answering the first call to shipping the last product out the door.


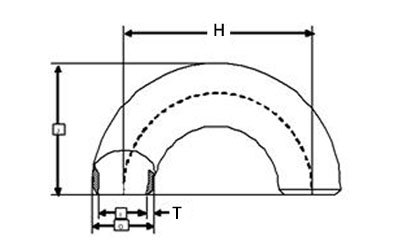

ANSI/ ASME B16.9 180° Long Radius Elbow Dimensions

Nom.
Pipe
Size
Pipe
Sched.
or No.
Center-
to-Center
Dimen.
Back-
to-
Face
Outside
Dia.
Inside
Dia.
Wall
Thick.
Approx.
Weight
(lb.)
H J OD ID T
     STANDARD WEIGHT
1/2 40 3 1 7/8 0.840 0.622 0.109 0.3
3/4 40 2 1/2 1 11/16 1.050 0.824 0.113 0.3
1 40 3 2  3/16 1.315 1.049 0.133 0.7
1 1/4 40 3 3/4 2 3/4 1.660 1.380 0.140 1
1 1/2 40 4 1/2 3 1/4 1.900 1.610 0.145 1.5
2 40 6 4  3/16 2.375 2.067 0.154 3
2 1/2 40 7 1/2 5  3/16 2.875 2.469 0.203 6
3 40 9 6 1/4 3.500 3.068 0.216 9
3 1/2 40 10 1/2 7 1/4 4.000 3.548 0.226 12
4 40 12 8 1/4 4.500 4.026 0.237 17
5 40 15 10  5/16 5.563 5.047 0.258 28
6 40 18 12  5/16 6.625 6.065 0.280 46
8 40 24 16  5/16 8.625 7.981 0.322 90
10 40 30 20 3/8 10.750 10.020 0.365 156
12 - 36 24 3/8 12.750 12.000 0.375 236
14 30 42 28 14.000 13.250 0.375 294
16 30 48 32 16.000 15.250 0.375 404
18 - 54 36 18.000 17.250 0.375 512
20 20 60 40 20.000 19.250 0.375 617
24 20 72 48 24.000 23.250 0.375 886
     EXTRA STRONG
1/2 80 3 1 7/8 0.840 0.546 0.147 0.5
3/4 80 2 1/2 1 11/16 1.050 0.742 0.154 0.5
1 80 3 2  3/16 1.315 0.957 0.179 1
1 1/4 80 3 3/4 2 3/4 1.660 1.278 0.191 1.5
1 1/2 80 4 1/2 3 1/4 1.900 1.500 0.200 2
2 80 6 4  3/16 2.375 1.939 0.218 4
2 1/2 80 7 1/2 5  3/16 2.875 2.323 0.276 7.5
3 80 9 6 1/4 3.500 2.900 0.300 12
3 1/2 80 10 1/2 7 1/4 4.000 3.364 0.318 17
4 80 12 8 1/4 4.500 3.826 0.337 23
5 80 15 10  5/16 5.563 4.813 0.375 40
6 80 18 12  5/16 6.625 5.761 0.432 67
8 80 24 16  5/16 8.625 7.625 0.500 138
10 60 30 20 3/8 10.750 9.750 0.500 215
12 - 36 24 3/8 12.750 11.750 0.500 300
14 - 42 28 14.000 13.000 0.500 376
16 40 48 32 16.000 15.000 0.500 524
18 - 54 36 18.000 17.000 0.500 676
20 30 60 40 20.000 19.000 0.500 824
24 - 72 48 24.000 20.000 0.500 1183

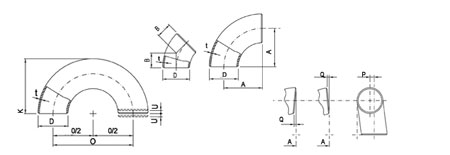

ANSI/ ASME B16.9 180° Long Radius Elbow Tolerence



DIMENSIONAL TOLERANCES - ELBOWS
For all fittings Elbows 90/45 deg 180° Returns
Nominal Pipe Size (NPS) Outside Ø
at Bevel		 Inside Ø
at End		 Wall Thickness
t / t1		 Center to End Dim. A-B-C-M Center to Center Dim.
O		 Back to Face Dim.
K		 Align- ment of Ends
U
1/2 a 2 1/2 1 0,8 Not 2 7 7 1
3 a 3 1/2 1 1,6 less 2 7 7 1
4 +2 -1 1,6 than 2 7 7 1
5 a 6 +3 -1 1,6 87,50% 2 7 7 1
8 2 1,6 of nominal 2 7 7 1
10 +4 -3 3,2 tickness 2 7 7 2
12 a 18 +4 -3 3,2   3 10 7 2
20 a 24 +6 -5 4,8 3 10 7 2
26 a 30 +7 -5 4,8 3 ..... ..... .....
32 a 48 +7 -5 4,8   5 ..... ..... .....

Angularity Tolerances
ND Max off angle Max off plane
Q P
1/2 a 4 1 2
5 a 8 2 4
10 a 12 3 5
14 a 16 3 7
18 a 24 4 10
26 a 30 5 10
32 a 42 5 13
44 a 48 5 20


ANSI/ ASME B16.9 3D Elbow Packing & Shipping

Package details: Each order is packaged according to the customer' s standards including preparation for export such as wooden case, pallet or according to customer's requirement All shipping documentation is provided for seamless delivery from mill to customer.

We export to:

ANSI/ ASME B16.9 180° Long Radius Elbow export,manufacture & supply in Saudi arabia, Dubai, Turkey, Kuwait, USA , Canada & Oman



ANSI/ ASME B16.9 3D Elbow Application Industry

Sagar Forge & Fittings is involved in manufacturing of ANSI/ ASME B16.9 180° Long Radius Elbow. These ANSI/ ASME B16.9 180° Long Radius Elbow are widely used in various industries such as:

Chemical
Petrochemical
Refineries
Fertilizers
Power Plant
Nuclear Power
Oil & Gas
Paper
Breweries
